Product Overview

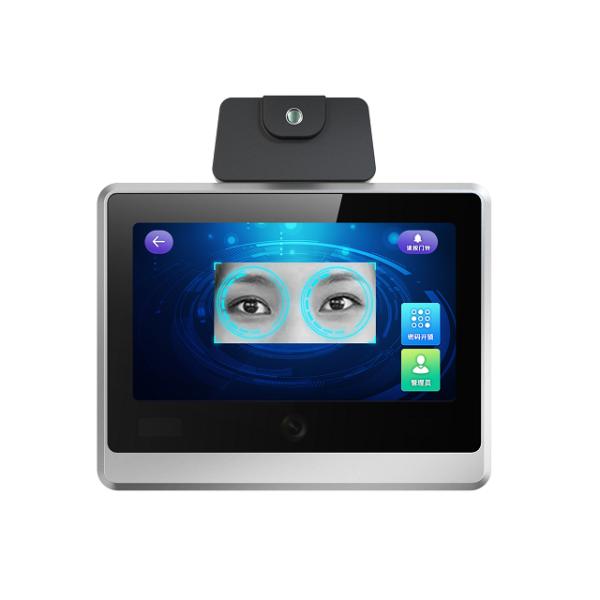

D36T is a non-contact iris and temperature access control device integrating high-performance iris recognition and temperature calibration algorithms. Featuring a 7-inch high-definition touch display and LCD real-time feedback assisted focusing, it enables recognition at long distances and across wide ranges — suitable for indoor and outdoor use. It is not affected by masks or protective clothing, delivering an excellent user experience.
Optional human infrared temperature measurement components allow non-contact, long-range accurate personnel identification. When iris recognition succeeds and body temperature is normal, the device controls the door lock to open. If body temperature is abnormal, the door remains locked, and an abnormal temperature alarm is triggered. Personnel identity and temperature data are automatically uploaded to the background service system, enabling effective monitoring of individuals with abnormal fever. It is widely used for access management in enterprise buildings, schools, communities, parks, venues, hospitals, factories, and more.
Core Functions & Features
1. Dual Recognition: Iris + Temperature Measurement
● Enables non-contact iris + temperature dual recognition, meeting epidemic prevention and control requirements for access authorization.
● Supports liveness detection to prevent spoofing attacks via videos, images, or other fake media.
2. Accurate Temperature Screening
● Uses a self-developed environmental temperature calibration algorithm with multi-point facial temperature sampling.
● Achieves temperature measurement speed < 0.5s and temperature measurement accuracy ±0.3°C.
● Displays temperature values from the infrared body temperature detection module on the UI interface, with abnormal temperature alarms.
3. High-Performance Iris Recognition
● Features a 7-inch touch display with LCD real-time feedback assisted focusing.
● Enables fast local iris recognition with average recognition time ≤1s.
● Supports a maximum user capacity of 5,000 individuals (iris).
● Offers a long iris recognition distance of 35–60cm.
4. Adaptive & User-Friendly Design
● Manual up/down lens pitch adjustment (pitch angle > 52°) to perfectly suit user heights ranging from 1.4–1.9m.
● Auto-focus lens that automatically identifies and captures the user’s eye for convenient operation.
Application Fields
D36T is widely used for access control, security, and identification in scenarios including:
● Enterprise buildings, schools, communities, parks, and venues.
● Hospitals, factories, and other environments requiring access management with temperature screening.
Why Choose D36T?
1. Epidemic Prevention Compliance: Non-contact iris + temperature dual recognition aligns with health and safety protocols.
2. Fast & Accurate Screening: <0.5s temperature measurement + ±0.3°C accuracy enable efficient fever detection.
3. Reliable Iris Recognition: ≤1s recognition + 5,000-user capacity suit medium-scale access needs.
4. User-Centric Design: Adjustable lens, auto-focus, and touch display enhance usability for diverse users.
5. Comprehensive Integration: Supports TCP/IP, WIFI, and multiple interfaces for seamless system integration.
As a professional enterprise in the biometric sector, Wuhan Homsh Technology drives secure authentication through technological innovation. Leveraging proprietary core algorithms, end-to-end technical capabilities, and high-precision hardware expertise, we provide professional support for our full range of biometric products, including iris recognition and vein recognition.
We cater to the needs of global industries like finance and security, offering technical consultation, custom development, and round-the-clock after-sales support. We look forward to partnering with global counterparts to build a secure authentication ecosystem via biometric technology and empower industrial digital upgrading.
Specification
| Product Model | D36T |
| Product Size | 188.5*147*54.5mm |
| Display Screen | 7-inch HD LCD screen (with touch screen) |
| Camera | Iris: 8MP |
| Working Distance | Iris: 35~60cm |
| Recognition Methods | Iris, Password |
| Height Range | 1.4~1.9m |
| User Capacity | Iris: 5,000 individuals |
| Average Recognition Time | Iris ≤1s |
| False Acceptance Rate (FAR) | 10-7 |
| False Rejection Rate (FRR) | 10-3 |
| Temperature Measurement Range | 20~60cm |
| Temperature Accuracy | ±0.3°C |
| Infrared Safety Standard | Complies with ANSI RP-27.1-96 (USA) and IEC/EN62471 (EU) standards |
| Core Algorithm Performance | Meets the requirements of "Technical Requirements for Information Security Iris Recognition Systems" GB/T20979-2019 |
| Iris Image Quality | Complies with national standard GB/T33767.6-2018 for iris image data |
| Communication Methods | TCP/IP, WIFI |
| Other Interfaces | DC/RJ45/RS-232/RS-485/Wiegand IO/Door Lock/Exit Button/USB 2.0 |
| Operating Temperature | -10°C~55°C |
| Operating Humidity | 0~93% RH, non-condensing |
| Operating Light Intensity | 0~6000 Lux (non-direct sunlight) |
| Power Voltage | DC 12V@2A |
| Installation Method | Wall-mounted or Desktop Placement |
| Operation Indication | LCD screen prompts, voice guidance |
|
|
D36T Iris & Temperature Access Control Terminal – Non-Contact Biometric & Thermal Screening Solution Images
|
